The Multiloop Engine

EM Modelling API

The Multiloop Engine is a powerful server based solver engine with all the capabilities of Multiloop III. It produces scattered field responses and EM friendly meshes via a json formatted multiloop control file.

The control file contains the following information:

• transmitter loop corners
• receiver stations
• vector plane positions
• waveform and sampling information
• a description of the mesh or multiple meshes to solve

Example Model

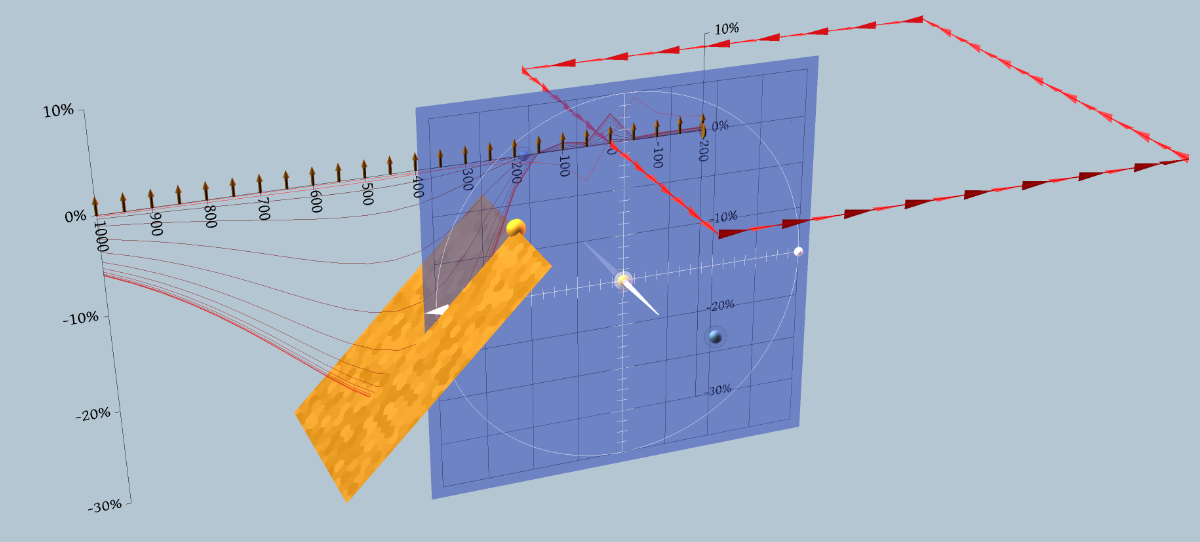

Files for the following example model (pictured) can be used as a guide to build plate and solve for the scattered field response.

Build Plate File

The build plate file takes in strike, dip and plunge parameters as well as a reference point and U V offset. The resistance can optionally be set here as well.

example_plate_file.json

Multiloop Control File

The multiloop control file takes in all the parameters of a survey that are necessary to solve for the scattered field response at station or vector plane positions.

example_control_file.json

mlpGL Archive File

The mlpGL archive file can be dropped into the front end environment and includes all survey parameters and settings.

example_mlpgl_archive.json
